The Essential Guide to Ring Die Feed Pellet Mills: Enhancing Feed Efficiency

Description

Uses and Significance of the Pellet Mill

The primary purpose of a feed pellet mill is simple yet critical: to convert various raw ingredients (grains, proteins, additives) into compact pellets. This process offers several major advantages:

1. Reduced Wastage: Pellets minimize the dust and segregation that occur with mash feed, ensuring animals consume the full spectrum of nutrients.
2. Improved Digestibility: The heat and pressure applied during pelletizing (thermal conditioning) gelatinize starches, making them easier for animals to digest and absorb.
3. Sterilization: The high-temperature process eliminates many harmful bacteria and pathogens, promoting animal health.
4. Density and Transport: Pellets occupy less volume than mash, simplifying storage and significantly reducing feed production line transportation costs.
5. Targeted Nutrition: Pellets allow for precise formulation, ensuring that livestock, poultry, and aquaculture species receive balanced nutrition, leading to faster growth and better health outcomes.

Types of Pellet Mills

While there are various designs, the two main types dominating the industry are based on their die configuration:

1. Flat Die Pellet Mill: Typically used for small-scale operations, experimental work, or processing high-fiber materials like biomass. It features a stationary flat die with rollers rotating above it.
2. Ring Die Pellet Mill: This is the industry standard for high-capacity, commercial animal feed production (including poultry, cattle, pigs, and fish). The material is fed into the inner circumference of a rotating vertical or horizontal ring die, where rollers press the material outward through the die holes. This design is highly efficient, durable, and necessary for achieving the high output required in commercial feed mill equipment settings. Henan Xuezao primarily focuses on optimizing this high-efficiency ring die design.

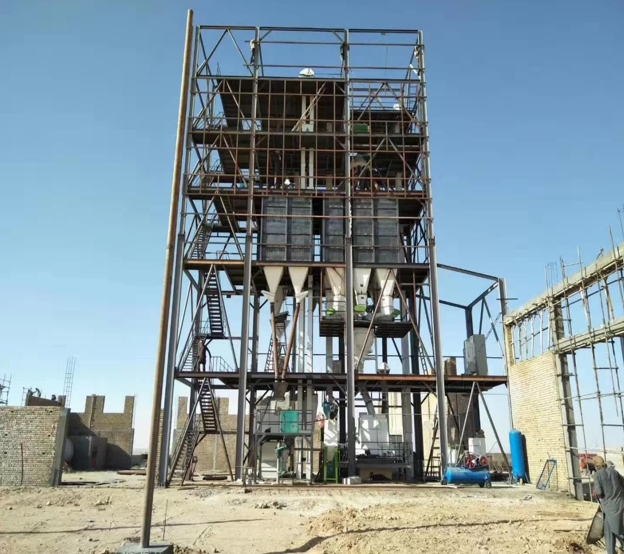

Essential Supporting Equipment for a Complete Feed Production Line

A Ring Die Pellet Mill is only one component of a fully functional feed processing facility. For optimal performance, it must be integrated into a complete feed mill system. The following supporting equipment is essential for a seamless and efficient process:

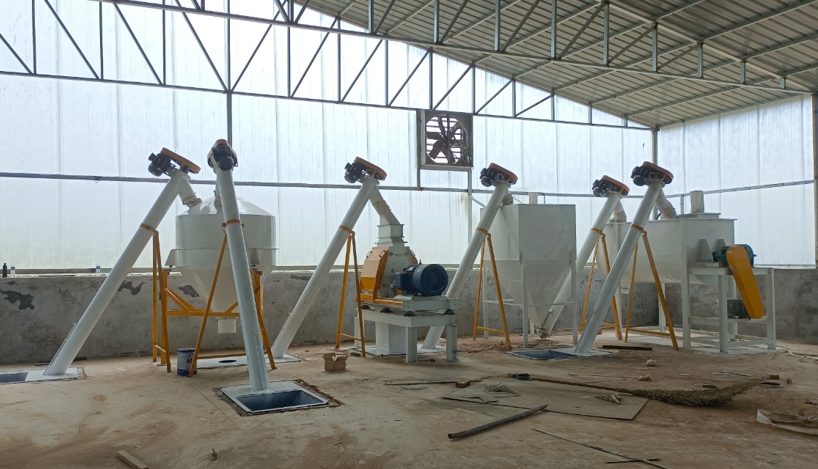

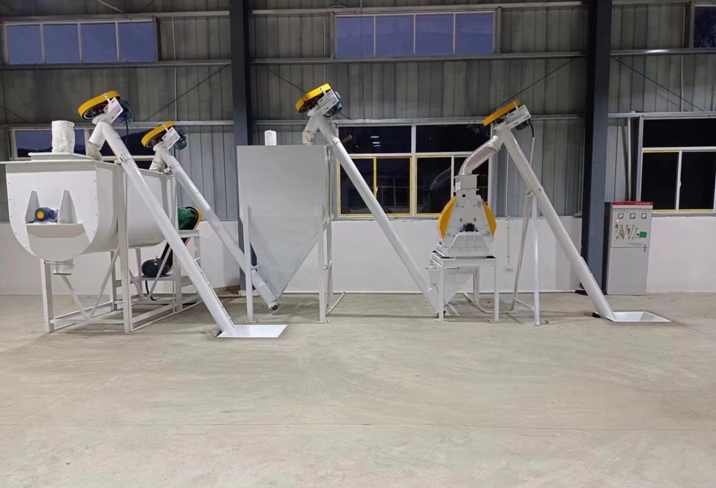

1. Pre-Processing Section

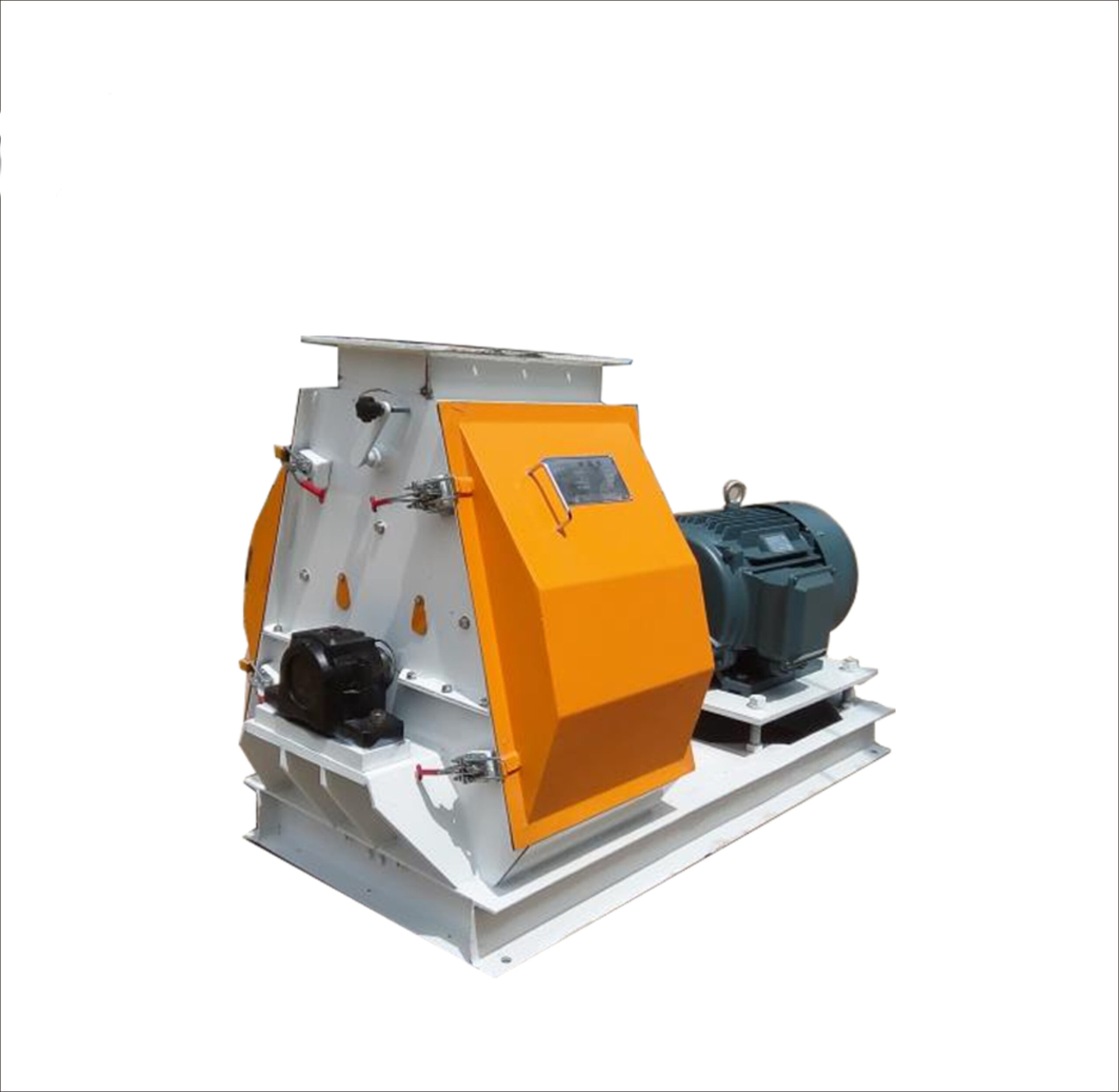

• Feed Grinder (Hammer Mill): Breaks down raw materials (corn, soybeans, etc.) into a uniform, fine particle size required for optimal pellet formation.
• Feed Mixer: Ensures all ingredients (including micro-nutrients, vitamins, and protein sources) are thoroughly and uniformly blended before conditioning.

2. Pelletizing Section

• Conditioner: Located just before the pellet mill, the conditioner uses steam and moisture to heat the mash. This is critical for achieving gelatinization, increasing the durability of the final pellet, and extending the lifespan of the ring die pellet machine.
• Ring Die Pellet Mill: The core unit.

3. Post-Processing Section

• Pellet Cooler: The hot pellets exiting the mill must be cooled rapidly (often using a counterflow cooler) to stabilize their structure, prevent moisture loss, and maximize durability, making them ready for storage or packaging.
• Pellet Crumbler (Optional): Used to break down standard pellets into smaller pieces (known as crumbles) suitable for feeding very young poultry or piglets.
• Sifter/Screen: Separates the cooled pellets, removing fines (dust) and oversized pieces. Fines are usually returned to the mixer for reprocessing.

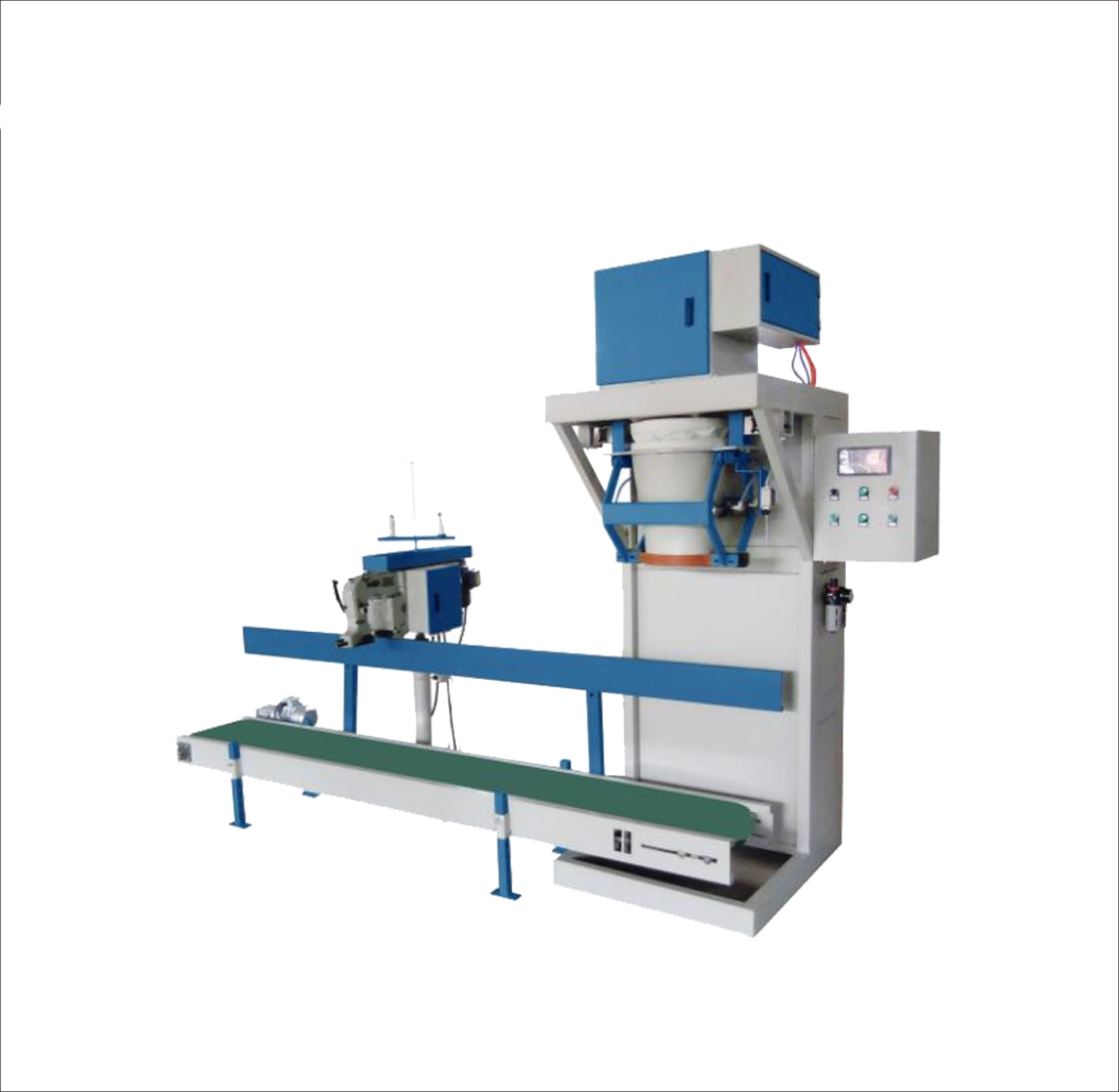

• Packaging Machine: Weighs and bags the final product efficiently.

Conclusion

For any operation serious about quality feed production, investing in a robust Ring Die Feed Pellet Mill and the necessary supporting machinery is paramount. At Henan Xuezao Machinery Equipment Co., Ltd., we combine technical expertise with durable manufacturing to provide reliable poultry feed pellet processing equipment that meets the stringent demands of the global feed industry. Partner with us to maximize your feed efficiency and reduce operational costs.
