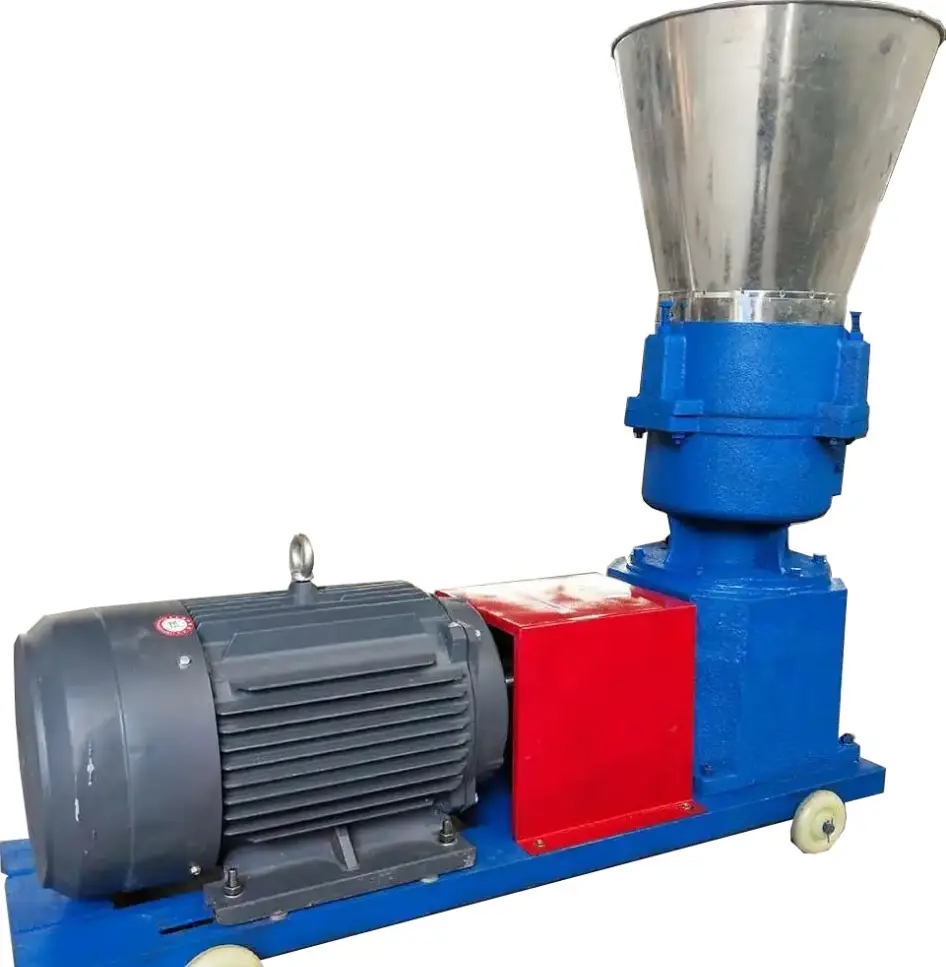

Flat Die feed Pellet Machine – Simple Design, Powerful Results
The Flat Die feed Pellet Machine is a versatile and cost-effective solution for making high-quality feed pellets, biomass fuel pellets, and organic fertilizer pellets.
With a capacity from 100 kg/h to 3 tons per hour, it is perfectly suited for home use, small farms, or small-scale biomass processing plants.

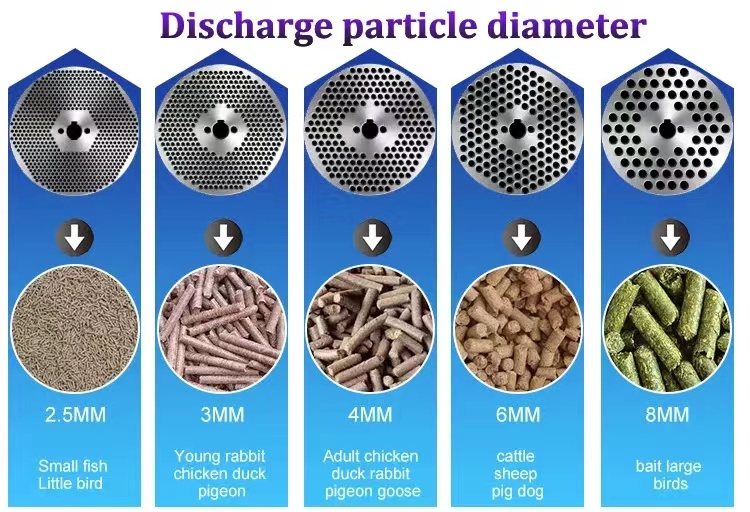

It produces cylindrical pellets with diameters from 2.5 mm to 12 mm, and the pellet length can be freely adjusted according to your needs.
| Model | Capacity kg/h | Roller Qty | Power kw | Size(mm) | Weight |
| XZ150 | 80-100kg | 2 | 4kw | 890*370*710mm | 76/90kg |
| XZ160 | 120-180kg | 3 | 4kw | 930*400*810mm | 99/115kg |
| XZ210 | 200-300kg | 3/4 | 7.5kw | 1220*530*850mm | 204/236kg |
| XZ230 | 300-400kg | 3/4 | 11kw | 1180*520*1020mm | 268/285kg |
| XZ260 | 400-600kg | 3/4 | 15kw | 1270*530*1030mm | 340/385kg |
| XZ300 | 800-1000kg | 4 | 22kw | 1300*800*1360mm | 400/420kg |
| XZ400 | 1200-1500kg | 4 | 37kw | 1500*800*1600mm | 700/800kg |
| XZ500 | 2000-3000kg | 4 | 55kw | 1530*930*1750mm | 1000/1100kg |
1. Simple Structure & Affordable Cost
The flat die feed pellet machine features a simple, compact structure, small footprint, and light weight — which makes it budget-friendly for individuals or small businesses.
-
Low investment cost: The manufacturing cost is lower than ring die models, making it ideal for small-scale use.
-

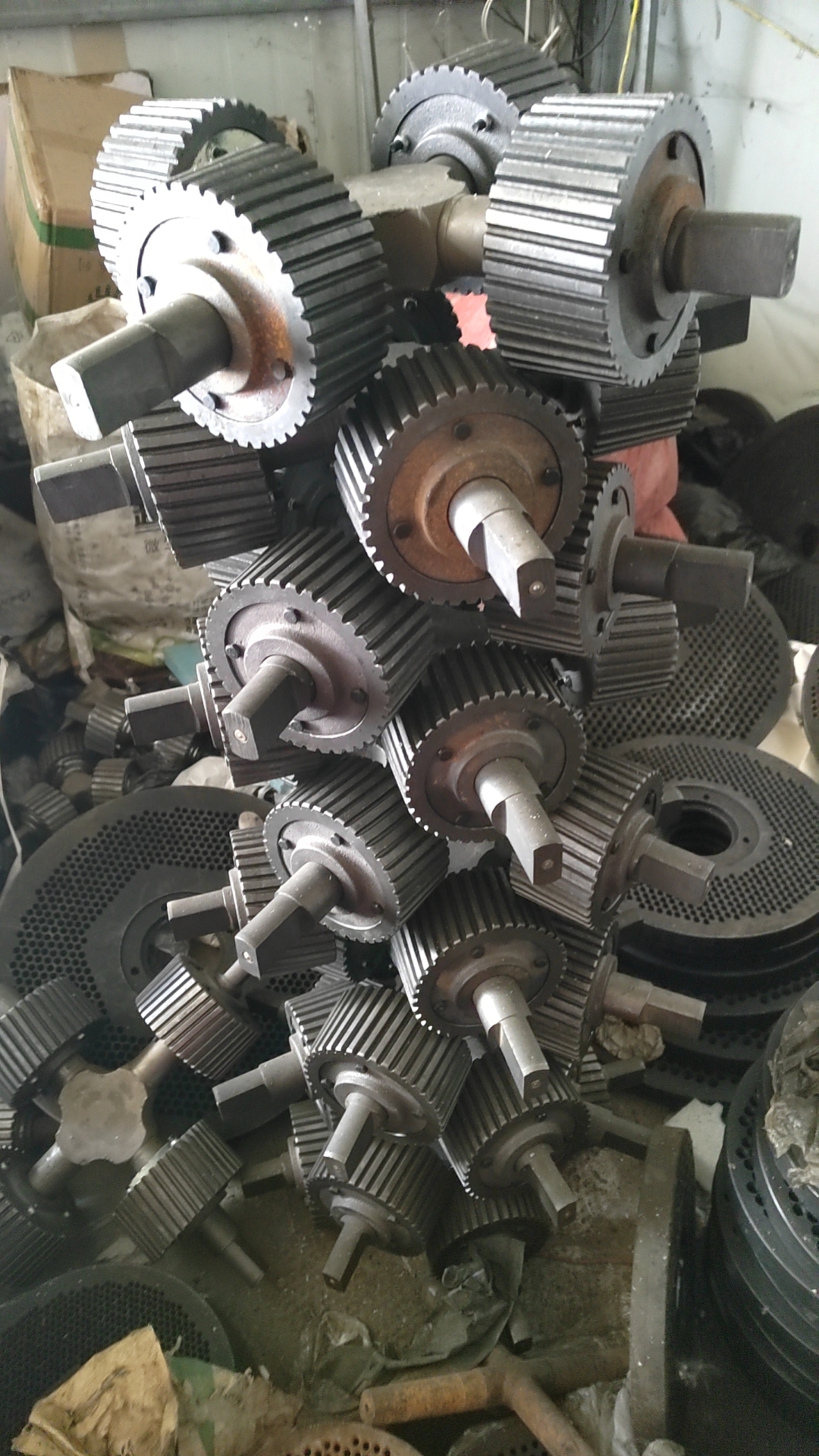

Low maintenance cost: The roller and die are easily replaceable and affordable, ensuring long-term low-cost operation.
If you are looking for a small feed pellet machine or a home pellet maker, this is the best choice for you.
2. Easy to Operate and Maintain
The flat die design is intuitive and easy to handle — even beginners can operate the machine without complex training.
-
User-friendly operation: Start and feed directly, no technical expertise required.
-
Easy cleaning: The flat die is horizontally positioned, allowing the user to easily open, inspect, and clean the die holes.
-
Less clogging: Horizontal feeding and simple die structure help prevent material blockage and ensure smooth pelletizing.
That’s why many users choose the flat die pellet mill for self-made feed production or small-scale trial runs.
3. Wide Material Adaptability – One Machine, Multiple Uses
The flat die pellet machine can process a wide range of materials, making it a true multi-purpose pelletizer.
Feed Pellet Production:
Corn, wheat, barley, rice, soybean meal, rapeseed meal, peanut meal, cottonseed meal, fish meal, bone meal, alfalfa, straw, bran, and more.
Biomass Pellet Production:
Sawdust, wood chips, shavings, bamboo, rice husk, wheat straw, corn stalk, sugarcane bagasse, palm kernel shell, coconut shell, and other agricultural residues.
Organic Fertilizer Pellet Production:
Compost, animal manure, and organic waste materials can also be processed.
This flexibility makes it ideal for farm owners, biomass workshops, and research centers that require small-batch, multi-formula production.
4. Low Pelletizing Temperature – Preserve Nutrients Better
Unlike high-pressure ring die machines, the flat die pelletizer operates at a lower pelletizing temperature (below 80°C).
This helps retain vitamins, enzymes, probiotics, and heat-sensitive nutrients in feed formulations.
For animal feed production — especially for poultry, fish, or livestock — this ensures better feed quality and improved animal health and growth.
That’s why it’s highly recommended for chicken feed pellet making, pig feed pellet production, and aquatic feed.
5. Flexible Power Options
Depending on your working environment, you can choose various power configurations:
-

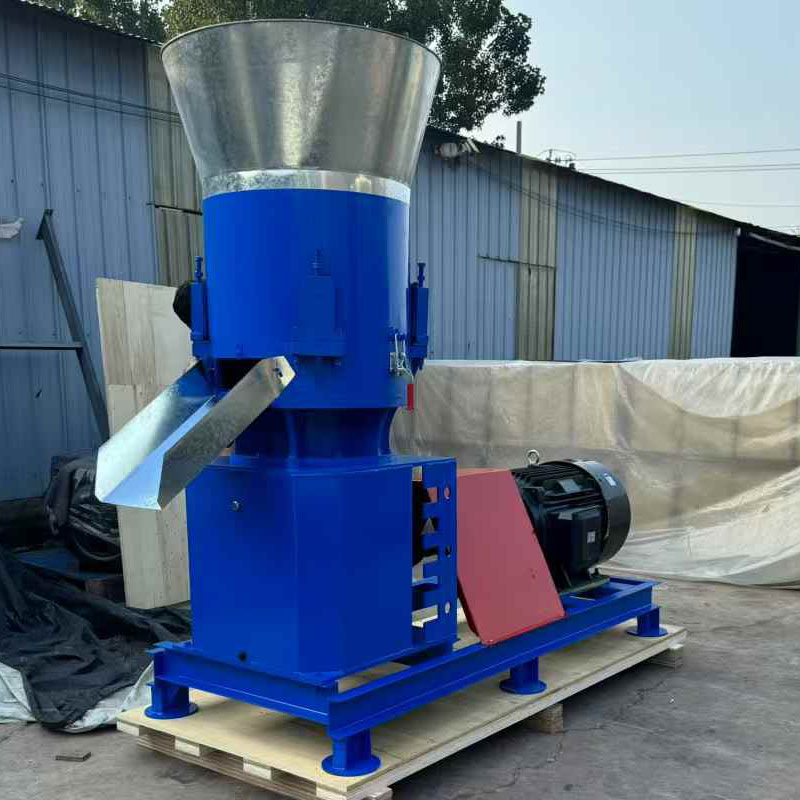

Electric motor driven flat die pellet machine (ideal for stable power supply areas)
-

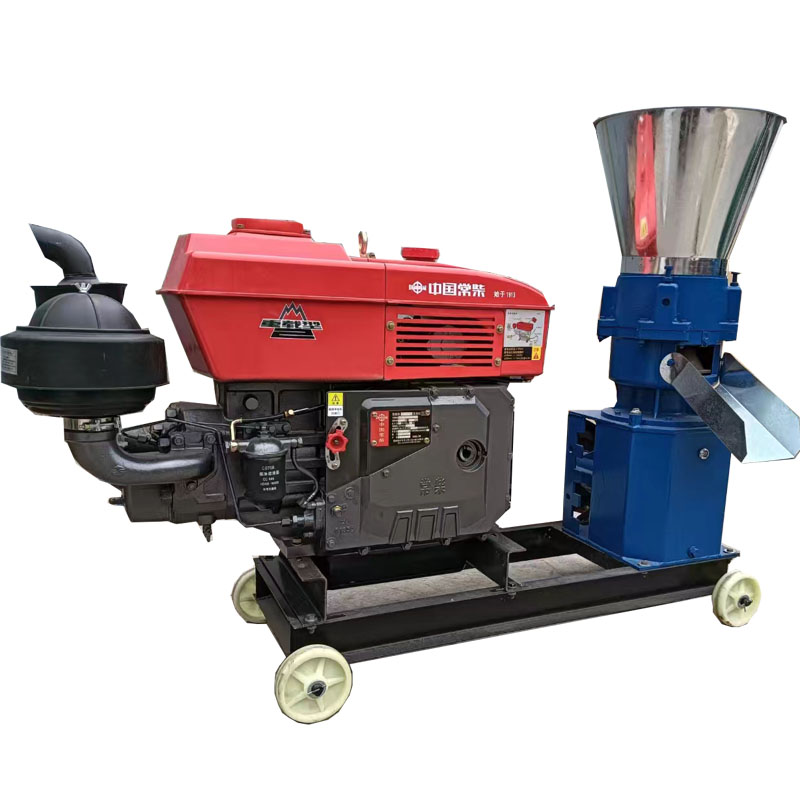

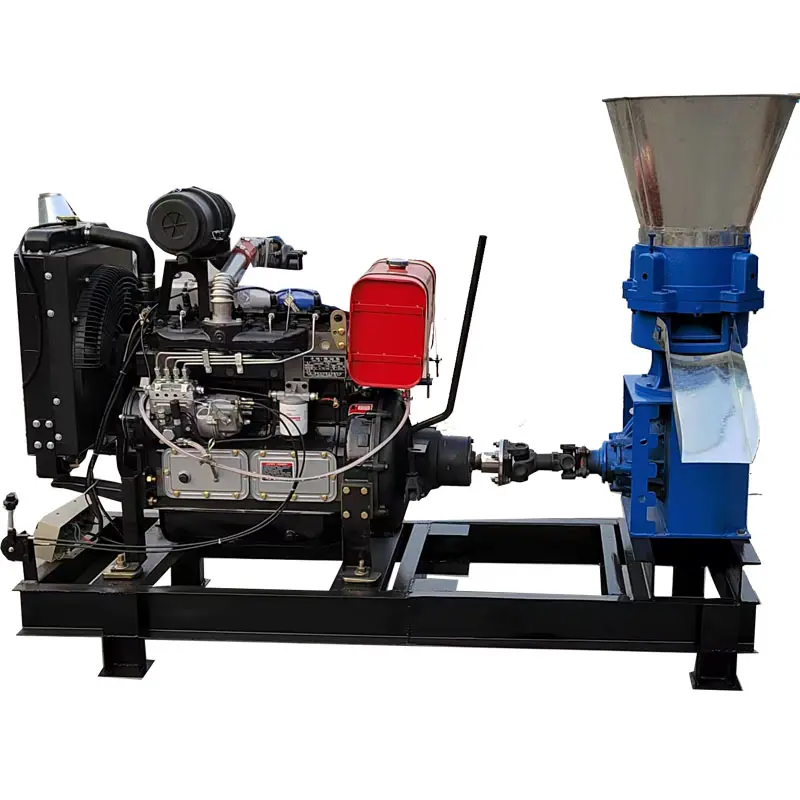

Diesel engine pellet machine (for outdoor or rural use)
-

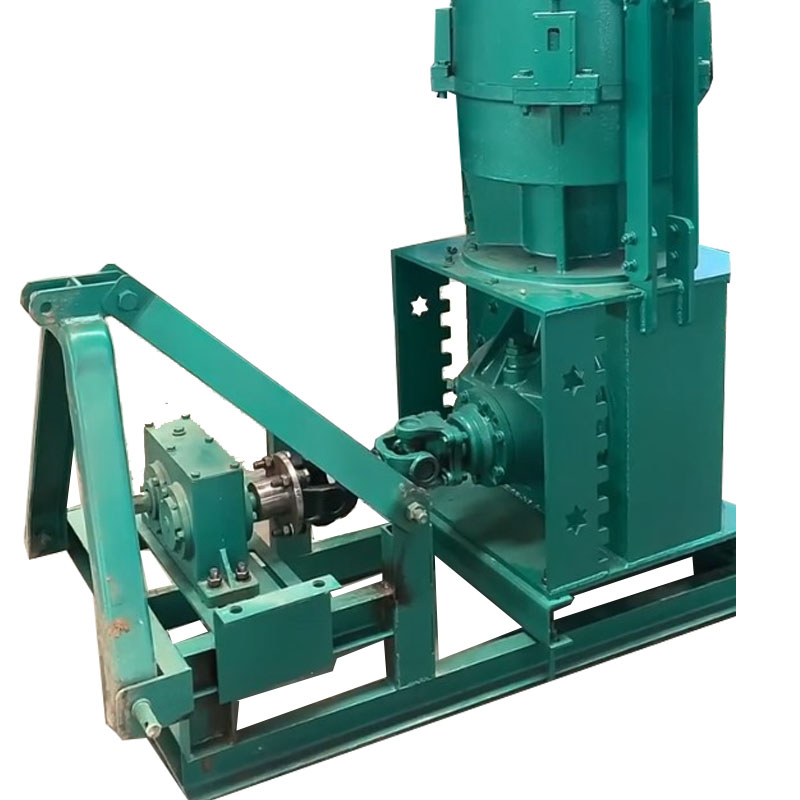

PTO-driven pellet machine (connected directly to tractors for farm use)
This flexibility allows production anywhere, even in areas without reliable electricity.
Working Principle of Flat Die Pellet Machine

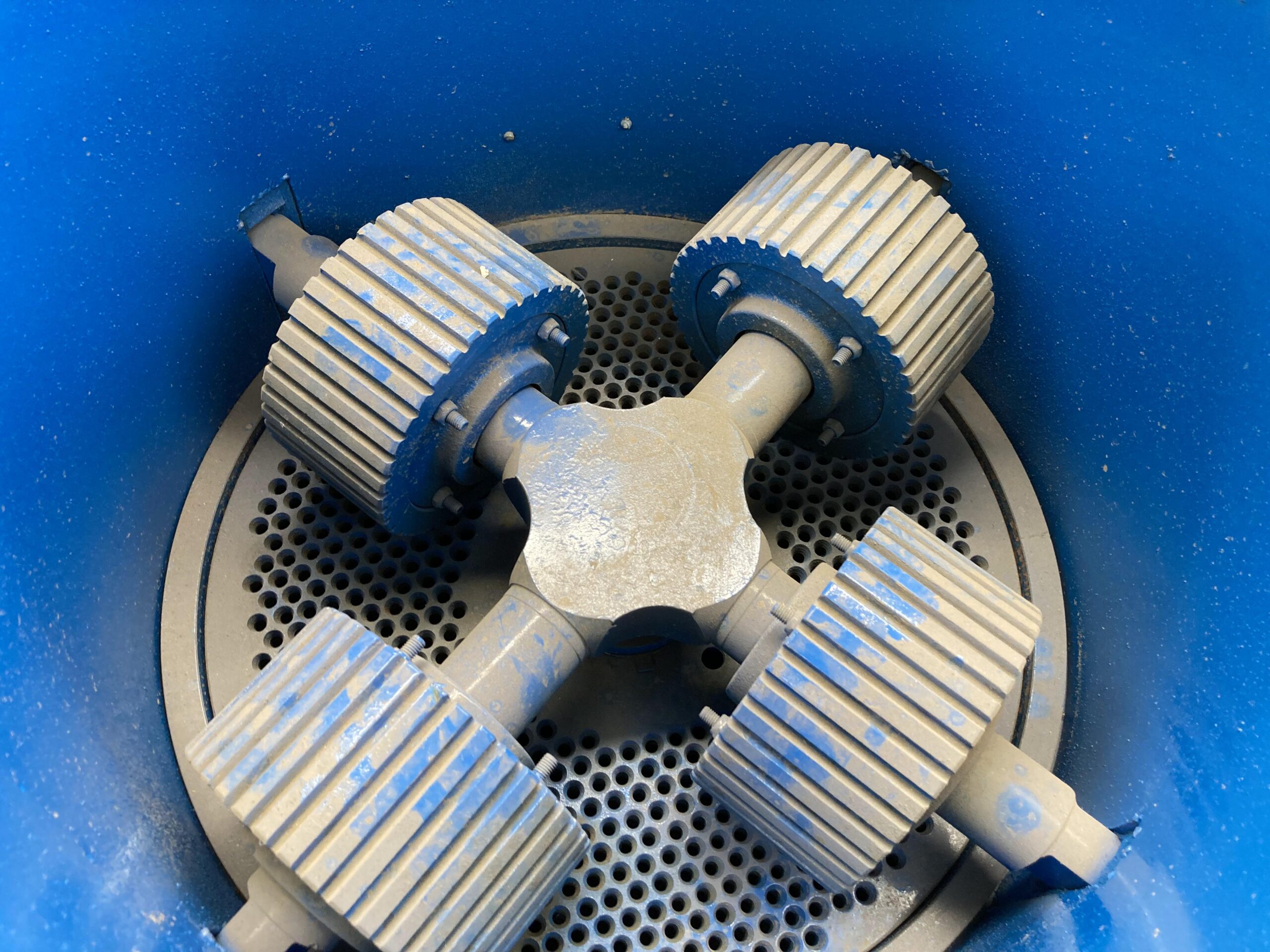

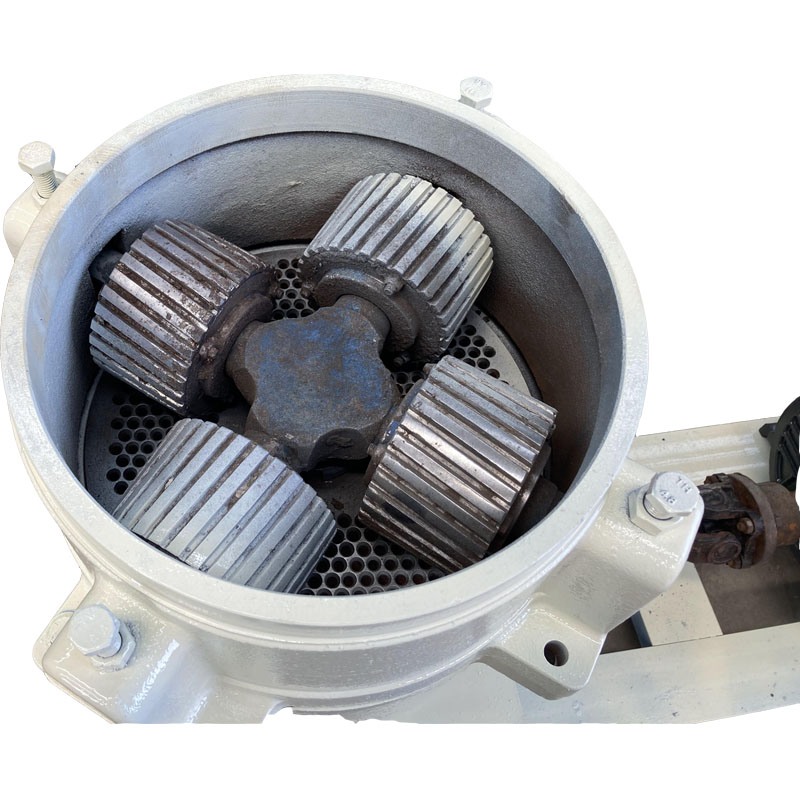

Inside the machine, the rollers rotate over the flat die, pressing the raw materials downward through the die holes.
The compressed material emerges as solid, uniform pellets, which are then cut to adjustable lengths.
This mechanical compression process ensures good pellet density and smooth surface without the need for extra binders.
💡 Applications and Use Cases
-
Home and farm feed production
-
Small-scale biomass fuel manufacturing
-
Organic fertilizer granulation
-
Educational and experimental feed formulation
Whether you are making chicken feed pellets, pig feed, or straw biomass fuel, this flat die feed pellet machine provides dependable performance and consistent results.
🛠️ Common User Questions
Q1: How to use a flat die pellet machine?
Simply prepare the raw materials, keep the moisture content around 10–15%, start the machine, and feed evenly.
Q2: What should I do if the machine doesn’t discharge pellets?
Check for blocked die holes, ensure material moisture is correct, and adjust roller pressure.
Q3: What is the price of a small feed pellet machine?
Prices vary depending on capacity and configuration — contact us for a factory-direct quotation.
Q4: Can I make corn stalk pellets or grass pellets?
Yes, our biomass flat die feed pellet mill can process corn stalk, grass powder, or sawdust after proper crushing and drying.
🏭 Why Choose Us — Henan Xuezao Machinery Equipment Co., Ltd.
We are a professional flat die pellet machine manufacturer with years of experience in feed and biomass equipment.
✅ Advanced production technology
✅ Reliable after-sales service and spare parts supply
✅ Customizable models (Customization is available based on production capacity and model.)
✅ Trusted by thousands of satisfied customers worldwide
We offer factory-direct prices, strong technical support, and fast delivery — helping you start pellet production quickly and efficiently.
📞 Get the Best Price Today!
Looking for a feed pellet machine for home or farm use?
Need a diesel flat die pellet mill or biomass pellet maker?
👉 Contact Henan Xuezao Machinery Equipment Co., Ltd. today for your best quotation!
We’ll help you choose the right model, provide complete guidance, and deliver high-performance machines at unbeatable prices.
